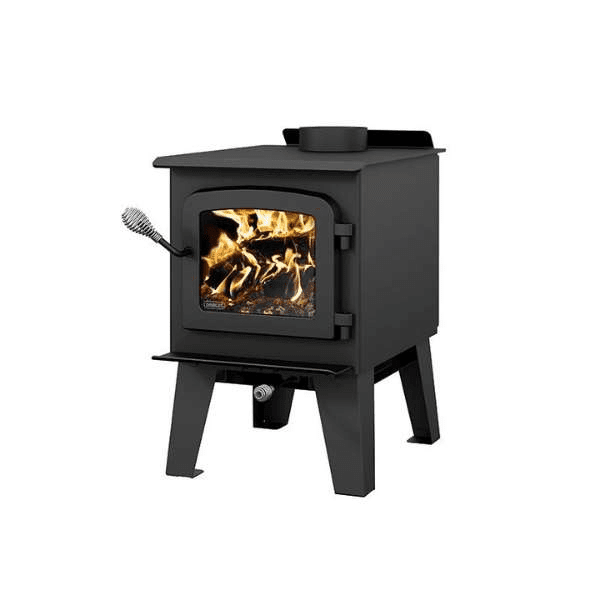

Get a Warm, Toasty Fire in No Time With the Drolet Spark II Wood Stove
Fed up with spending all day trying to get your fireplace going? The Drolet Spark II Wood Stove is your solution! This compact little powerhouse is certified EPA and non-catalytic, meaning you'll get a warm, toasty fire in no time. With a maximum heat output of 45,000 BTU/h, the Spark II can heat up to 1,200 ft² - perfect for small spaces.
The Spark II is the perfect stove for anyone who wants an easy-to-use, low-maintenance wood stove. Its combustion chamber is deeper than other models, so you can go longer between ash cleanouts. Plus, it comes in a convenient cardboard box that's easy to transport and assemble. So ditch the hassle of traditional fireplaces and pick up a Spark II Wood Stove today!
Drolet Spark II High-Efficiency Wood Stove Features:
Up to 5 hours burn time
Up to 17" logs
1.55 ft³ firebox
EPA certified
Proudly made in Canada
Limited lifetime warranty
Certified for mobile home and alcove installation
Weight: 242 lbs
Firebox lined with refractory bricks for better heat distribution
Optimum efficiency: 80 %
Average particulate emissions rate: 1.8 g/h
Steel thickness – top: 1/4"
High-efficiency certified appliance: Yes, EPA 2020 approved
Approved for a mobile home installation
Recommended heating area-ft² : 250 - 1,200
This product will begin shipping out on December 30, 2022. This ETA is true across all online retailers. Place your order with us for the fastest fulfillment speed.
Specifications
| Fuel type | Dry cordwood (16" recommended) |
|---|---|
| Recommended heating area-ft² () | 250 - 1,200 |
| Overall firebox volume-ft³ | 1.7 |
| EPA loading volume-ft³ | 1.55 |
| Maximum burn time () | 5 h |
| Maximum heat output-dry cordwood (3) | 45,000 BTU/h (13.19 kW) |
| Overall heat output rate < (3) (4) | 12,124 BTU/h (3.55 kW) to 26,700 BTU/h (7.83 kW) |
| Average overall efficiency (dry cordwood) (4) | 74 % (HHV) (5) 79 % (LHV) (6) |
| Optimum efficiency (7) (8) | 80% |
| Optimum heat transfer efficiency (9) | 79% |
| Average particulate emissions rate (1) | 1.8 g/h |
| Average CO (10) | 74 g/h |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 17" |
| Log positioning | Loading over depth |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Baffle type | High quality vermiculite |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 235 lb (107 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 10 1/4" X 8 1/2" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 28 3/4" |
| Overall dimension (Width) | 18 1/2" |
| Overall dimension (Depth) | 28 7/8" |
| Door opening – dimension (Height) | 7 5/8" |
| Door opening - dimension (Width) | 12" |
| Firebox – dimension (Height) | 11 3/4" |
| Firebox – dimension (Width) | 14 1/4" |
| Firebox – dimension (Depth) | 19 1/8" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 1/4" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Drolet Spark II Clearance Requirements:
| United States | Single wall pipe | Double-wall pipe |
|---|---|---|
| Clearance – back wall | 12" | 6" |
| Clearance - corner | 11" | 7" |
| Clearance – side wall | 18" | 18" |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" |
Package Includes
Included: steel legs, air deflector, ceramic glass, cast iron door with adjustable hinges, ash lip, air damper
Options: blower, thermodisc, firescreen, fresh air intake kit
When you purchase a Drolet Spark II, you qualify to receive a federal tax credit of up to 26% of the cost installation AND equipment. Read more about it .
Product Manual
Drolet Spark II Mobile Home Wood Stove Manual:
Drolet Spark IILarge Wood Stove DB03401 Dimensions:
