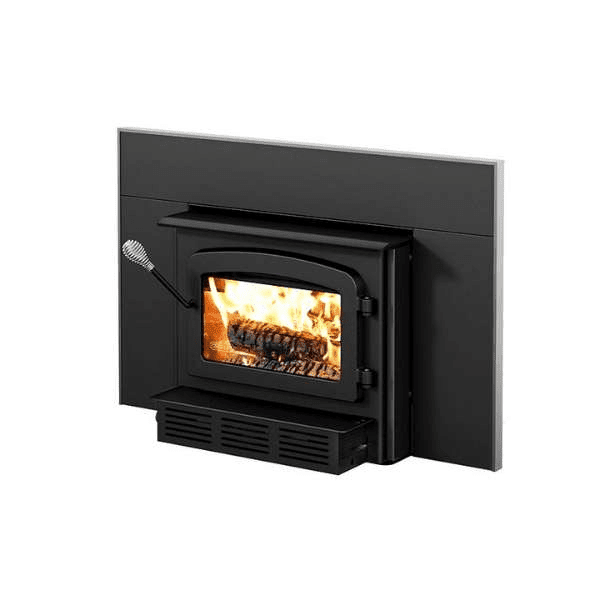

Drolet Escape 1800 Insert Will Transform Your Masonry Fireplace
Get the Perfect Heat for Your Needs With the Drolet Escape 1800-I Wood Insert!
Bring the cozy comfort of a wood-burning fireplace to your home with the Drolet Escape 1800-i Wood Burning Fireplace Insert! This efficient and EPA-certified appliance is ideal for heating up to 2,100 ft², making it perfect for larger spaces. Plus, its clean burning design emits only 1.54 g/h of particulate emissions, making it a safe and eco-friendly choice. Upgrade your masonry fireplace today with the Drolet Escape 1800-i Wood Burning Fireplace Insert!
Drolet Escape 1800 Insert Features:
Burn time up to 8 hours
Up to 20'' logs
2.4 ft³ firebox
Robust 5/16'' steel
EPA certified
Proudly made in Canada
Limited lifetime warranty
Firebox lined with refractory bricks for better heat distribution
Optimum efficiency: 77 %
Average particulate emissions rate: 1.54 g/h
Steel thickness – top: 5/16"
High-efficiency certified appliance: Yes, EPA 2020 approved
Recommended heating area-ft² : 500 - 2,100
Blower included
This product will begin shipping out on July 24, 2023. This ETA is true across all online retailers. Place your order with us for the fastest fulfillment speed.
Specifications
| Fuel type | Dry cordwood (16" recommended) |
|---|---|
| Recommended heating area-ft² | 500 - 2,100 |
| Overall firebox volume-ft³ | 2.4 |
| EPA loading volume-ft³ | 2.02 |
| Maximum burn time | 8 h |
| Maximum heat output-dry cordwood | 75,000 BTU/h (22.0 kW) |
| Overall heat output rate | 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW) |
| Average overall efficiency (dry cordwood) | / 74 % (LHV) |
| Optimum overall efficiency | 77 % |
| Optimum heat transfer efficiency | 75 % |
| Average particulate emissions rate | 1.54 g/h |
| Average CO | 89.4 g/h |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 12' |
| Baffle type | High quality vermiculite |
| Approved for a mobile home installation | No |
| Shipping Weight | 405 lb (184 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 16" X 9 1/4" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 144 |
| Overall dimension (Height) | 23 1/8" |
| Overall dimension (Width) | 28 3/8" |
| Overall dimension (Depth) | 26 3/8" |
| Door opening – dimension (Height) | 9" |
| Door opening - dimension (Width) | 17 1/2" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 16 1/2" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Adjustable threaded legs | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| Fireplace opening – minimum (Height) | 23 3/8" |
| Fireplace opening – minimum (Width) | 28 7/8" |
| Fireplace opening – minimum (Depth) | 15 3/4" |
| USA standard (emissions) | EPA Method 28 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Clearance Requirements:
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" |
|---|---|
| Clearance – combustible side mantle to unit | 9" |
| Clearance – combustible top mantle to unit | 27" |
| Clearance – combustible sidewall to unit | 16" |
| Clearance – minimum floor protection in front of the appliance | 16" |
| Clearance - from the top of the unit to the shelf | 27" |
| Clearance – from the top of the insert to the shelf | 27" |
Package Includes
Included: blower, ceramic glass, ash lip, air damper
Options: faceplate (regular or large) with brushed nickel trim or cuttable faceplate, firescreen, fresh air intake
When you purchase a Drolet Escape 1800-I, you qualify to receive a federal tax credit of up to 26% of the cost installation AND equipment. Read more about it .
Product Manual
Drolet Escape 1800 Fireplace Insert Manual:
Drolet Escape 1800-I Wood Insert DB03125 Specification Sheet:
Delivery
Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our
