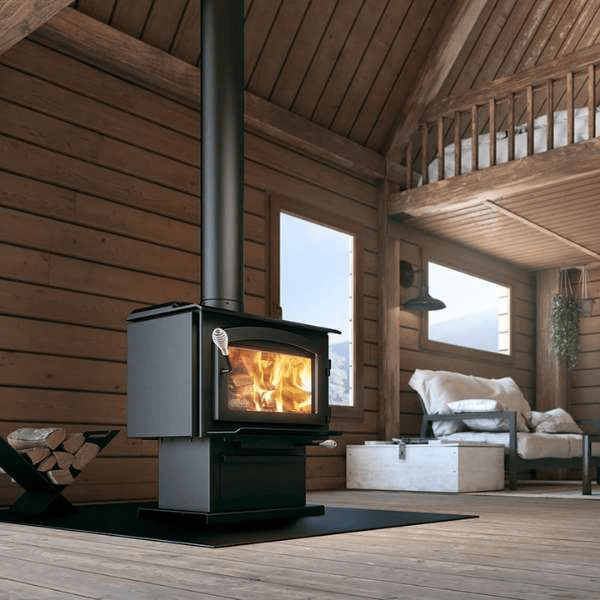

Drolet Escape 1500 Wood Stove Helps You Stay Warm and Cozy
The Drolet Escape 1500 Wood Stove gives you the perfect excuse to hunker down and get cozy this winter. With an impressive 65,000 BTUs of heating power, this stove is perfect for homes up to 1,800 ft². This non-catalytic wood stove emits only 1.26 g/h of particulate emissions, making it a great option for those looking for an eco-friendly heat source.
It features side panels that help reduce clearances to combustible materials and the top heat exchanger that helps redirect the heat to the front of the unit, making this stove a great choice for anyone looking for an efficient and reliable heating source.
Drolet Escape 1500 High Efficiency Wood Stove Features:
Burn time up to 6 hours
Up to 18'' logs
1.9 ft³ firebox
Heavy duty 5/16'' steel top
EPA certified
Proudly made in Canada
Limited lifetime warranty
Certified for mobile home and alcove installation
Firebox lined with refractory bricks for better heat distribution
Optimum efficiency : 78 %
Average particulate emissions rate : 1.26 g/h
Steel thickness – top : 5/16"
High-efficiency certified appliance : Yes, EPA 2020 approved
Approved for a mobile home installation
Recommended heating area-ft² : 500 - 1,800
Specifications
| Fuel type | Dry cordwood (16" recommended) |
|---|---|
| Recommended heating area-ft² () | 500 - 1,800 |
| Overall firebox volume-ft³ | 1.9 |
| EPA loading volume-ft³ | 1.44 |
| Maximum burn time () | 6 h |
| Maximum heat output-dry cordwood (3) | 65,000 BTU/h (19 kW) |
| Overall heat output rate < (3) (4) | 15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW) |
| Average overall efficiency (dry cordwood) (4) | 70 % (HHV) (5) |
| Optimum overall efficiency (7) (8) | 78% |
| Optimum heat transfer efficiency (9) | 74% |
| Average particulate emissions rate (1) | 1.26 g/h |
| Average CO (10) | 58 g/h |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 18" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Baffle type | High quality vermiculite |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 332 lb (151 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 15 3/4" x 9 3/4" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 29 7/8" |
| Overall dimension (Width) | 24 7/8" |
| Overall dimension (Depth) | 24 1/2" |
| Door opening – dimension (Height) | 8" |
| Door opening - dimension (Width) | 17 1/4" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 19 5/8" |
| Firebox – dimension (Depth) | 13 1/2" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Pedestal |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Drolet Escape 1500 Clearance Requirements:
| United States | Single wall pipe | Double-wall pipe |
|---|---|---|
| Clearance – back wall | 13" | 6" |
| Clearance - corner | 12" | 6" |
| Clearance – side wall | 10" | 10" |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" |
Package Includes
Included: pedestal with ash drawer, airmate, ceramic glass, side panels, ash lip, air damper
Optional: blower, thermodisc, firescreen, fresh air intake
Product Manual
Drolet Escape 1500 DB03135 Installation and Operation Manual:
Drolet Escape 1500 Pellet Wood Stove Dimensions:
