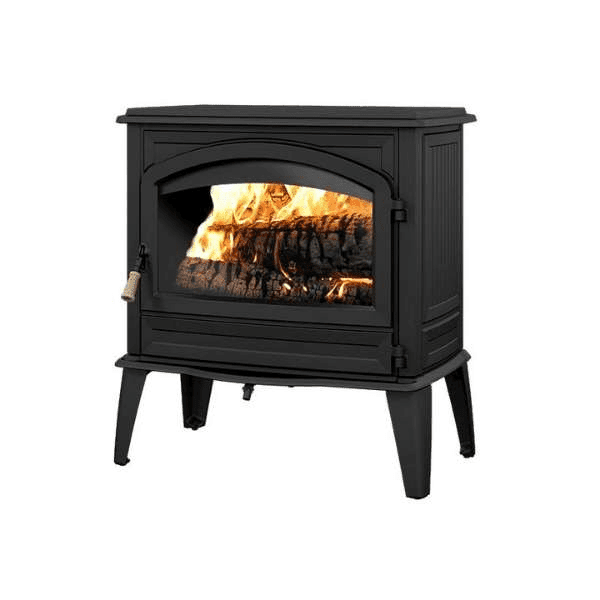

Warm Up Your Home With the Drolet Cape Town 1800 Cast Iron Wood Stove
The Drolet Cape Town 1800 Cast Iron Wood Stove is a great way to heat up your home. With its cast iron construction, it's durable and built to last. Plus, it has a maximum power of 75,000 BTU/h, making it perfect for homes up to 2000 sq². This model is also certified at 1.8 g/h, meaning you can enjoy a warm and toasty fire with an emission that complies with the environmental standards. The flue outlet is located at the back and on the top of the stove, making it easy to install. The large viewing area and full width andiron make it easy to load logs, while the classic design and distinguished cast iron finish give it loads of charm. So why not take a closer look at this amazing wood stove?
Drolet Cape Town 1800 Cast Iron Wood Stove Features:
Up to 8 hours burn time
21’’ logs
2 ft³ firebox volume
EPA certified
Made in Belgium
Limited lifetime warranty
Certified for mobile home and alcove installation
Firebox lined with refractory bricks for better heat distribution
Optimum efficiency : 78 %
Average particulate emissions rate : 1.8 g/h
High-efficiency certified appliance : Yes, EPA 2020 approved
Recommended heating area-ft² : 500 - 2,000
Specifications
| Fuel type | Dry cordwood (16" recommended) |
|---|---|
| Recommended heating area-ft² | 500 - 2,000 |
| Overall firebox volume-ft³ | 2 |
| EPA loading volume-ft³ | 1.55 |
| Maximum burn time | 8 h |
| Maximum heat output-dry cordwood | 75,000 BTU/h (22 kW) |
| Overall heat output rate | 13,784 BTU/h (4.04 kW) to 57,684 BTU/h (16.91 kW) |
| Average overall efficiency (dry cordwood) | 71% (HHV) to 76% (LHV) |
| Optimum overall efficiency | 0.78 |
| Optimum heat transfer efficiency | 0.77 |
| Average particulate emissions rate | 1.8 g/h |
| Average CO | 120 g/h |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | CSA B415.1-10 |
| Maximum log length | 21" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Baffle type | High quality vermiculite |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | No |
| Shipping Weight | 545 lb (247 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 20 1/2" X 12" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 32 5/8" |
| Overall dimension (Width) | 30 3/4" |
| Overall dimension (Depth) | 22 5/8" |
| Door opening – dimension (Height) | 9 1/2" |
| Door opening - dimension (Width) | 22" |
| Firebox – dimension (Height) | 9 1/2" |
| Firebox – dimension (Width) | 21 7/8" |
| Firebox – dimension (Depth) | 13 1/4" |
| Moulded refractory bricks | Yes |
| Model | Legs |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Drolet Cape Town 1800 Pellet Wood Stove Clearance Requirements:
| United-States | Single wall pipe | Double-wall pipe |
|---|---|---|
| Clearance – back wall | 18" | 10" |
| Clearance - corner | 16" | 8" |
| Clearance – side wall | 16" | 16" |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" |
Package Includes
Included: ash drawer, ceramic glass, ash lip, broad-spectrum air damper
Options: heat shield
Product Manual
Cape Town 1800 High Efficiency Wood Stove Installation and Operation Manual:
Drolet Cape Town 1800 Wood Stove DB04900 Specification Sheet
