STUNNING FROM ANY ANGLE

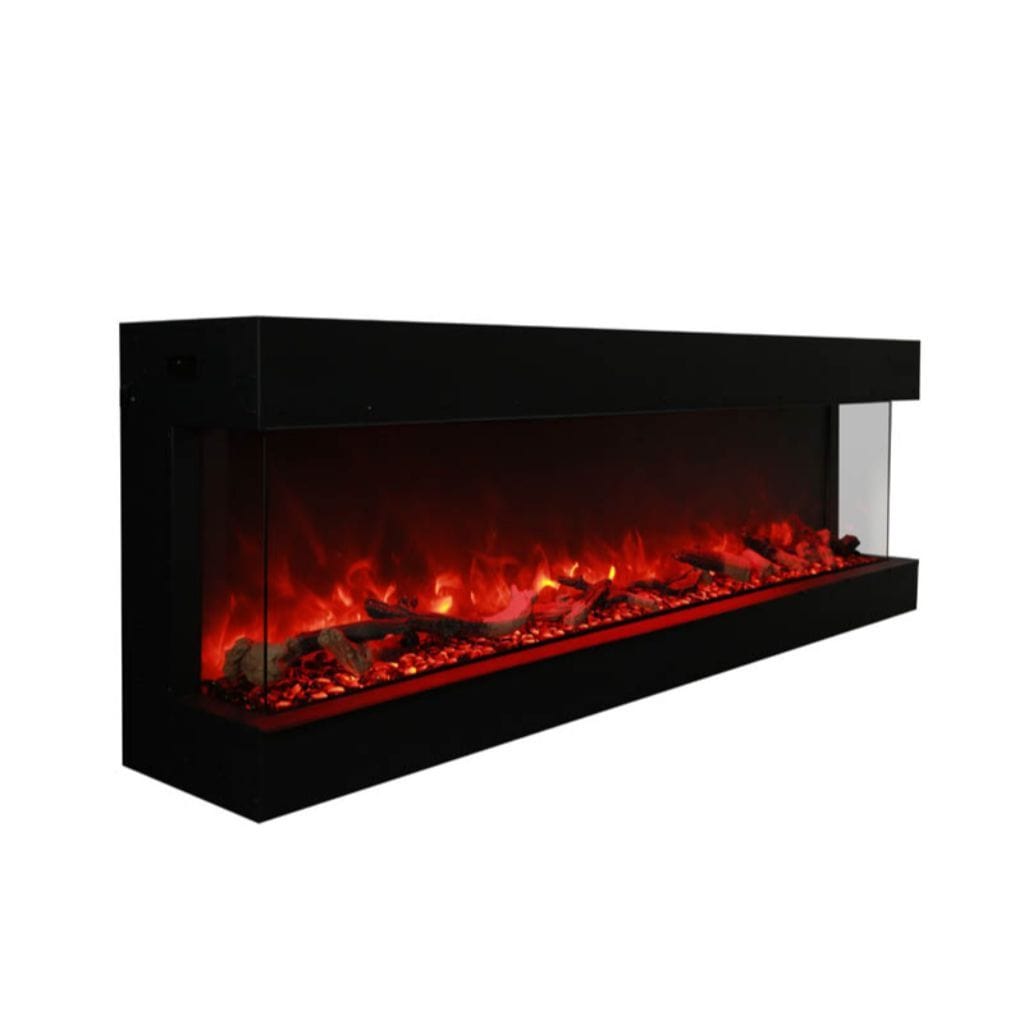

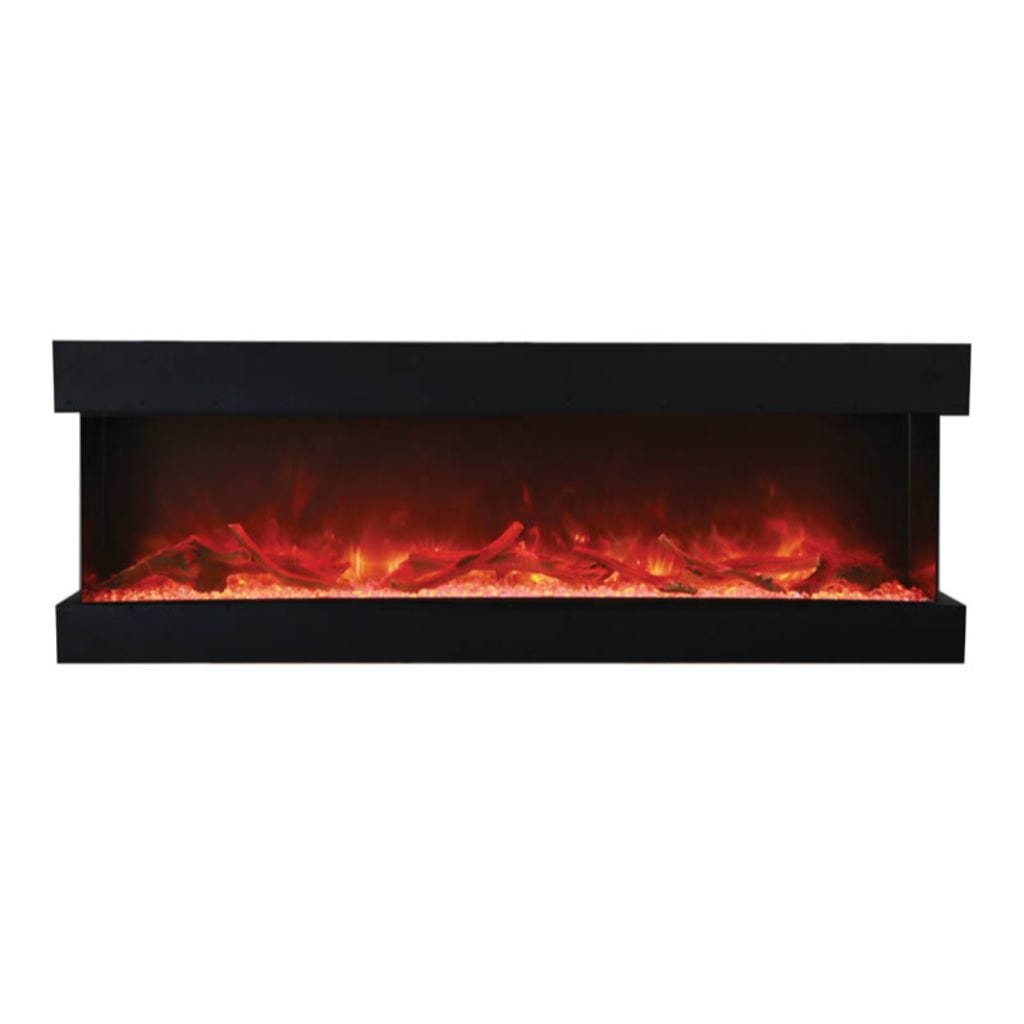

The 72-TRU-VIEW-XL-DEEP 3 sided electric fireplace is truly innovative! The gorgeous flame presentation and unique media options can now be viewed from almost any angle through 3 sides of glass viewing area.

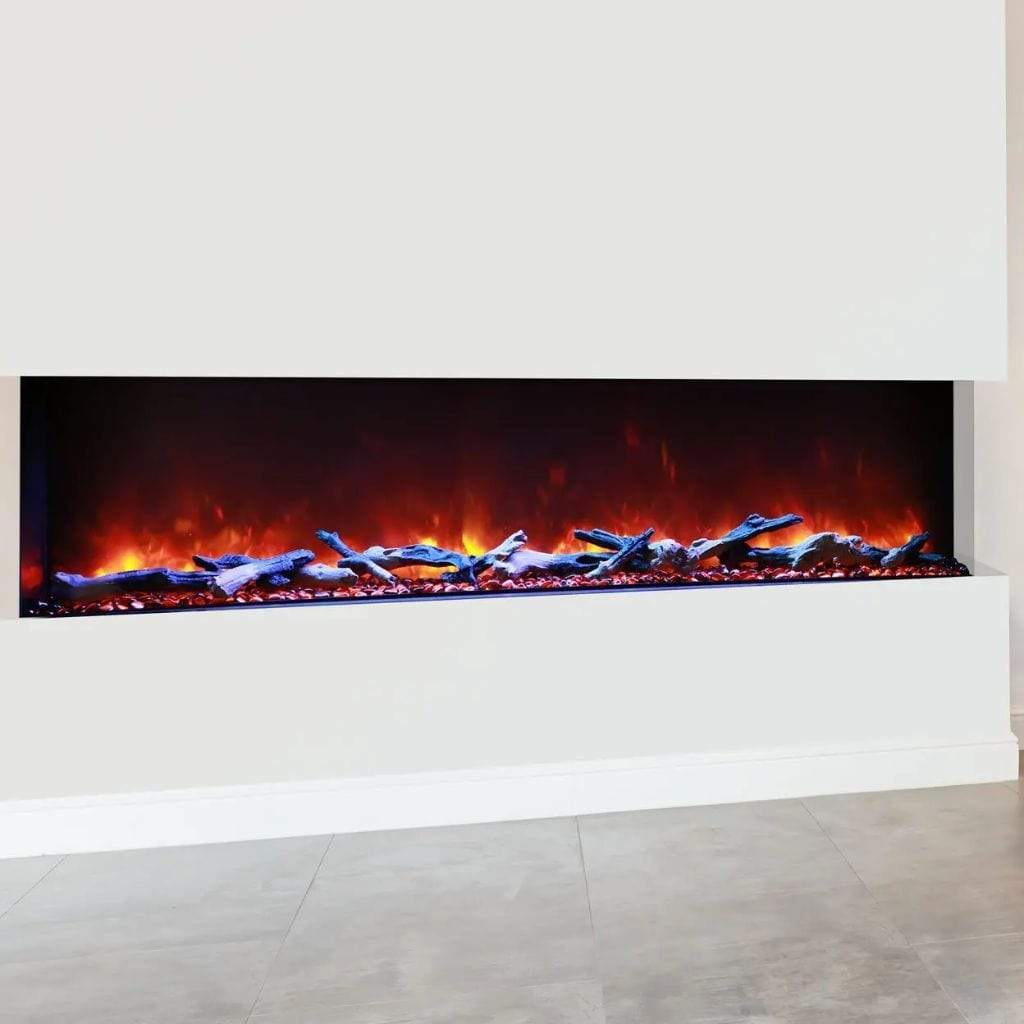

Designed for finishing materials are to built flush to the lip for a clean face finish.?Built-In only. No trim or surround included.
The Tru-ViewXL series work beautifully as Corner Electric Fireplace.
Perfect for any space, inside or out, including bathrooms.
Boasting a depth of 14 1/4”, the TRU-VIEW-XL-DEEP features two flame sets, ambient canopy lighting in 13 colors to illuminate the decorative media like never before and our exclusive FIRE & ICE?? flame presentation that allows users to choose from blue, rose, violet, yellow or orange colored flames with just the click of the remote control.
Customize the appearance of the 72-TRU-VIEW-XL-DEEP further by utilizing the included?Designer Media Kit?which includes a Drift 15 piece logset with deluxe media: black fire glass, pebbles, stones and vermiculite ashes. Further media options available for additional purchase.
4 Installation Options:
- all 3 sides of glass visible
- Left side visible
- Right visible
- front only for an extra deep (14 1/4″) fireplace
IDEAL APPLICATIONS
- Residential spaces
- Patios
- Outdoor spaces
- Commercial spaces
- Restaurants
- New construction or renovations
4 INSTALLATION CONFIGURATIONS
Both?sides closed
| 3?sides open
|
Right side open
| Left?side open
|
This corner fireplace can open left or open right or can have 3 sides open.
TRU-VIEW-XL-DEEP?fireplaces are rated for Indoor or Outdoor use.?For outdoor applications please?..
KEY FEATURES
 | FIRE & ICE? Flame Presentation? –?Three light strips allow for yellow, orange, blue, violet & rose colored flames |  | Illuminate decorative media like never before with ambient canopy lighting in 13 colors |
 | Heater & Fan Flame operates with or without heat |  | 14-1/4” deep comes with a Drift 15 piece logset with deluxe media: black fire glass, pebbles, stones and vermiculite ashes and the ICE media set. |
 | Thermostat hard-wire ready Electrical hard-wire ready |  | Perfect for zone heating approx. 400-500 sq ft. 4800 BTU |
 | Approved for Indoor and Outdoor Use |
?
- Available in , , and 72" sizes.
- Incredible 3 sided glass viewing area
- All models are rated for either indoor or outdoor use
- State‐of‐the‐art FIRE & ICE ? flame set, with a click of the remote, change the flame from traditional colors such as yellow and orange to more contemporary colors like blue, purple, rose and violet.
- Can produce up to 4800 BTU of heat, enough to heat up to 500 sq feet
- 2 Stage heater?
- Hard‐wire ready?
- Thermostat hard‐wire ready
- Flame operates with or without heat?
- Remote control for flame and heater
- 2 flame sets
- Ambient canopy lighting in 13 colors illuminates media like never before
FIRE & ICE? flame presentation |
|---|
? Vibrant multi-colored state-of-the-art?FIRE & ICE? flame that is easily changed from blue to purple to rose to violet to orange or yellow with just a click of the remote. Three color strips generate more flame options that ever. |
| Ambient Canopy Lighting |
|---|
 ? Ambient canopy lighting illuminates media like never before. Cast a colorful glow over the supplied decorative media in the tray below. Cycle through a rainbow of 13 different colors. Blend flame colors with contrasting canopy lighting for a unique presentation – the combinations are limitless |
SPECIFICATIONS
?
| 72-TRU-VIEW-XL-DEEP | |
| Volts | 120 |
| Amps | 12.5 |
| Watts | 1500 max |
| Heater | 1500 watts high 750 watts low |
| No Heater | 25 watts |
| Lamps | LED 22 watts |
| Rotor Motor | 1 at 5 watts |
| Height, Width, Depth | 26 5/8 x 75 1/4 x 14 1/4“ |
| Glass View Opening | 15 5/8 x 71 5/8” |
| Surround Size | N/A |
| Shipping Size | 31 7/8” x 86 5/8” x 16 1/8” |
| Shipping Weight | 192.5 lbs. Glass Included |
| Plug Location | Left Side |
| Cord Length | 70 7/8” |
| Approx. Heating Area | 400 sq. ft. |
INCLUDED ACCESSORIES
The 72-Tru-View-XL-DEEP electric fireplace comes with a choice of a Design Media kit – Driftwood, Birch or Rustic, or ICE media kit and a Remote control for flame and heater.
*Remote control may not be exactly as shown
Included Media is your choice of:
 |  |
 |  |
OPTIONAL ACCESSORIES
Click to see Optional Decorative Media Options
?
Customize the look of your electric fireplace by purchasing from our selection of stylish decorative media.
? | AMSF‐GLASS‐01?– 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color:?‘Clear’ |
 | AMSF‐GLASS‐02?– 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color:?‘Light Brown’ |
 | AMSF‐GLASS‐03?– 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color:?‘Charcoal’ |
 | AMSF‐GLASS‐04?– 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color:?‘Champagne’ |
 | AMSF‐GLASS‐05?– 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color:?‘Dark Grey’ |
 | AMSF‐GLASS‐06?– 1 Box includes approx. 5 lbs of 1″ Clear ‘Gem’ fireglass ‐ 1 sq. ft. of media coverage ‘clear’ Color:?‘Clear’ |
 | AMSF‐GLASS‐07?– 1 Box includes approx. 5 lbs of white frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color:?‘White’ |
 | AMSF‐GLASS‐08?– 1 Box includes approx. 5 lbs of dusty purple frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color:?‘Dusty Purple’ |
 | ? AMSF‐GLASS‐09?– 1 Box includes approx. 5 lbs of amber small bead fireglass ‐ 1 sq. ft. of media coverage ‘amber’ Color:?‘Amber’ |
 | AMSF‐GLASS‐10?– 1 Box includes approx. 5 lbs of small bead fireglass ‐ 1 sq. ft. of media coverage ‘orange’ Color:?‘Orange’ |
 | AMSF‐GLASS‐11?– 1 Box includes approx. 5 lbs of small “suntea’ bead fireglass ‐ 1 sq. ft. of media coverage ‘suntea’ Color:?‘Suntea’ |
 | AMSF‐GLASS‐12?– 1 Box includes approx. 5 lbs of small “black’ bead fireglass ‐ 1 sq. ft. of media coverage ‘black’ Color:?‘Black’ |
 | AMSF‐GLASS‐13?– 1 Box includes approx. 5 lbs of small “sable’ bead fireglass ‐ 1 sq. ft. of media coverage ‘sable’ Color:?‘Sable’ |
 | HZ-12-Ember?–?3 Colors of decorative media, Clear, Suntea, Harvest Moon Amantii / Sierra Flame decorative fire glass media is a beautiful addition to your electric fireplace. Turn your fireplace into a expressive work of art by simply adding our decorative fire glass media. Our fire glass adds a distinctly modern feel to your electric fireplace – mix colors and textures for a unique appearance. 3 Colors:?‘Clear, Suntea, Harvest Moon’ |
 | ? Fi-105-Diamond?–?Add an extra sparkle to your Amantii electric fireplace. The Amantii Deluxe Glass Diamonds Media Kit for Electric Fireplaces is everything you could want to add a shine to your hearth. Each kit contains one large glass nugget, two mini nuggets, along with diamond media,. Make your fireplace shine like a diamond.
|
 | ? Fi-106-Diamond?–?Add an extra sparkle to your Amantii electric fireplace. The Amantii Large Glass Nugget Media Kit for Electric Fireplaces is everything you could want to add a shine to your hearth. Each kit contains three extra large glass nuggets
|
 | ? Fi-107-Diamond?–?Add an extra sparkle to your Amantii electric fireplace. The Amantii Miniature Glass Nugget Media Kit for Electric Fireplaces is everything you could want to add a shine to your hearth. Each kit contains six miniature glass nuggets.
|
 | ? Fi-109-Diamond?–?Add an extra sparkle to your Amantii electric fireplace. The Amantii Deluxe Ice Glass Media Kit for Electric Fireplaces is everything you could want to add a shine to your hearth. Each kit contains three large glass nuggets and mixed diamond media.?
|
Click to see Optional Designer Media Kits
? | DESIGN‐MEDIA‐6PCE 6 piece log set with black fire glass, 90 piece pebble, rocks, Embers 1, Embers 2, Embers 3 and Embers 4 Use With:
|
 | DESIGN-MEDIA-14PCE RUSTIC‐14 Piece Log set with deluxe media: stones, pebbles, black fire glass and embers. Use With:
|
 | DESIGN‐MEDIA‐BIRCH‐15PCE BIRCH‐15 Piece Log set with deluxe media: stones, pebbles, black fire glass, and embers. *Not approved for Sierra Gas Units.
|
 | DESIGN‐MEDIA‐DRIFT‐15PCE DRIFT‐15 Piece Log set with deluxe media: stones, pebbles, black fire glass, and embers. Use With:
|
?
WARRANTY
Amantii Imports Corp. (Amantii) warrants that newly purchased Amantii electric fireplaces are free from manufacturing and material defects for a period of two (2) years from the date of first purchase. Must follow outdoor installation guide when installing outdoors.
Refer to?product manual for full warranty details.?
